Tarjeta madre AMD AM4 mATX con PCIe 4.0, dual M.2, WiFi, HDMI, D-Sub, DVI, SATA 6 Gbps, puertos USB 3.2 Gen 2 e iluminación Aura Sync RGB
Socket AMD AM4: Listo para procesadores Ryzen™ de escritorio Series 5000, 4000G y 3000. Refrigeración completa: Disipador de VRM, disipador de PCH y Fan Xpert 2+.
Conectividad ultrarrápida: Dual M.2, PCIe 4.0, Wi-Fi 802.11ac, USB 3.2 Gen 2 tipo A. Aura Sync RGB: Efectos LED sincronizables en una amplia gama de equipos de PC compatibles, incluidas tiras RGB direccionables.

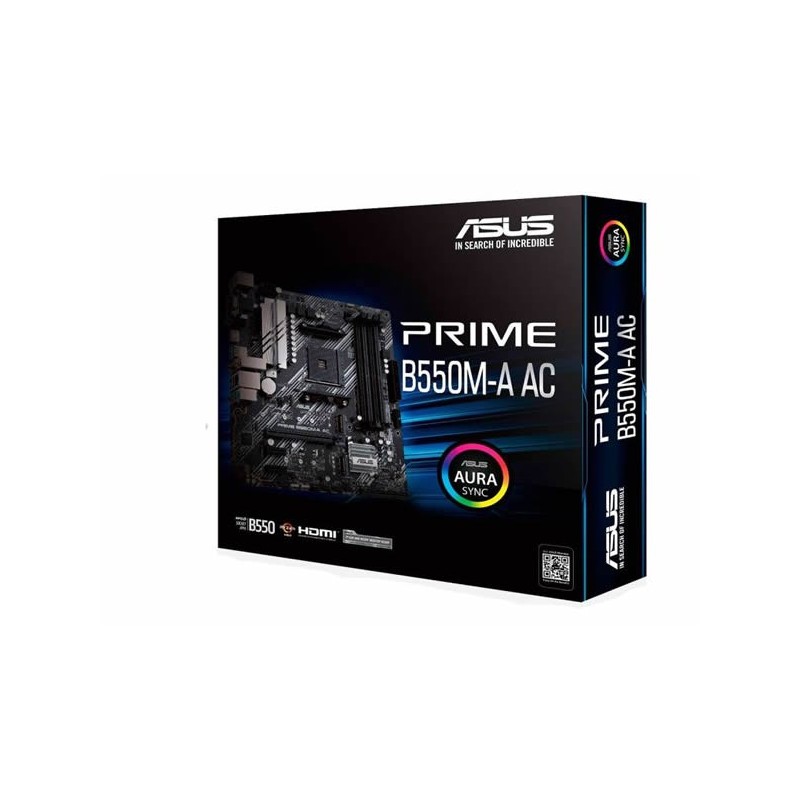

Model PRIME B550M-A AC
CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *,* Refer to www.asus.com for CPU support list
Chipset AMD B550
Memoria 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/
3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.
Gráficos 1 x HDMI 2.1(4K@60HZ)
Slots de Expansión AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors,AMD B550 Chipset,2 x PCIe 3.0 x1,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode)
Almacenamiento AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : ,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,AMD B550 Chipset : ,4 x SATA 6Gb/s port(s),,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support,Support Raid 0, 1, 10
LAN Realtek RTL8111H 1Gb Ethernet
Datos de redes inlámbricas Supports PCIe interface,Wi-Fi 802.11 a/b/g/n/ac,Supports dual band frequency 2.4/5 GHz
Bluetooth Bluetooth® 5.0
Audio Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors,Audio Feature :,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB 4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 2 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
